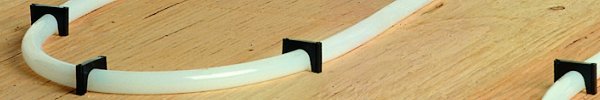

These high density polyethylene clips:
        • cannot damage tubing
        • provide excellent holding power

No nicking, no compressing, no piercing...
installations with the RB Flush Mount Clips are
damage-free! Available in three sizes for a
perfect fit. Each clip uses two nails - not staples
- to securely attach radiant tubing or PEX pipe
to any wooden surface.
U.S. Patents 4,801,061 &
4,801,064. Foreign patents
issued and pending.
The polyethylene material of the clips matches the material of the
tubing so that normal expansion is allowed but friction noise is reduced.
Properly installed with either the RB-5 Manual Clip Gun or the RB-6
Pneumatic Clip Gun, these clips provide holding power that is both
safe and long-lasting.

The RB Flush Mount Clips are also utilized in "staple up"
installations in which the installer wants the tubing to be held
flush against the wood for maximum heat transfer. In such
applications the maximum heat transfer must be weighed
against the chances of expansion noises. Installations
will be strong and long-lasting.
  TECHNICAL INFORMATION
    Code      Description
    F4OD     RB Flush Mount Clip for 3/8" I.D. (1/2" O.D.)
    F5OD     RB Flush Mount Clip for 1/2" I.D. (5/8" O.D.)
    F6OD     RB Flush Mount Clip for 5/8" I.D. (3/4" O.D.)
    Materials
    Clip housing - high density polyethylene
    Nails - galvanized steel
F4OD
    Packaging
    Strips of 20 clips
    Box of 100 clips
F5OD

for use in:
    radiant heating systems
    potable water systems

for use on:
    radiant heating tubing
    PEX, CPVC water pipe

for use with:
    RB-6 Pneumatic Clip Gun
    RB-5 Manual Clip Gun
F6OD
